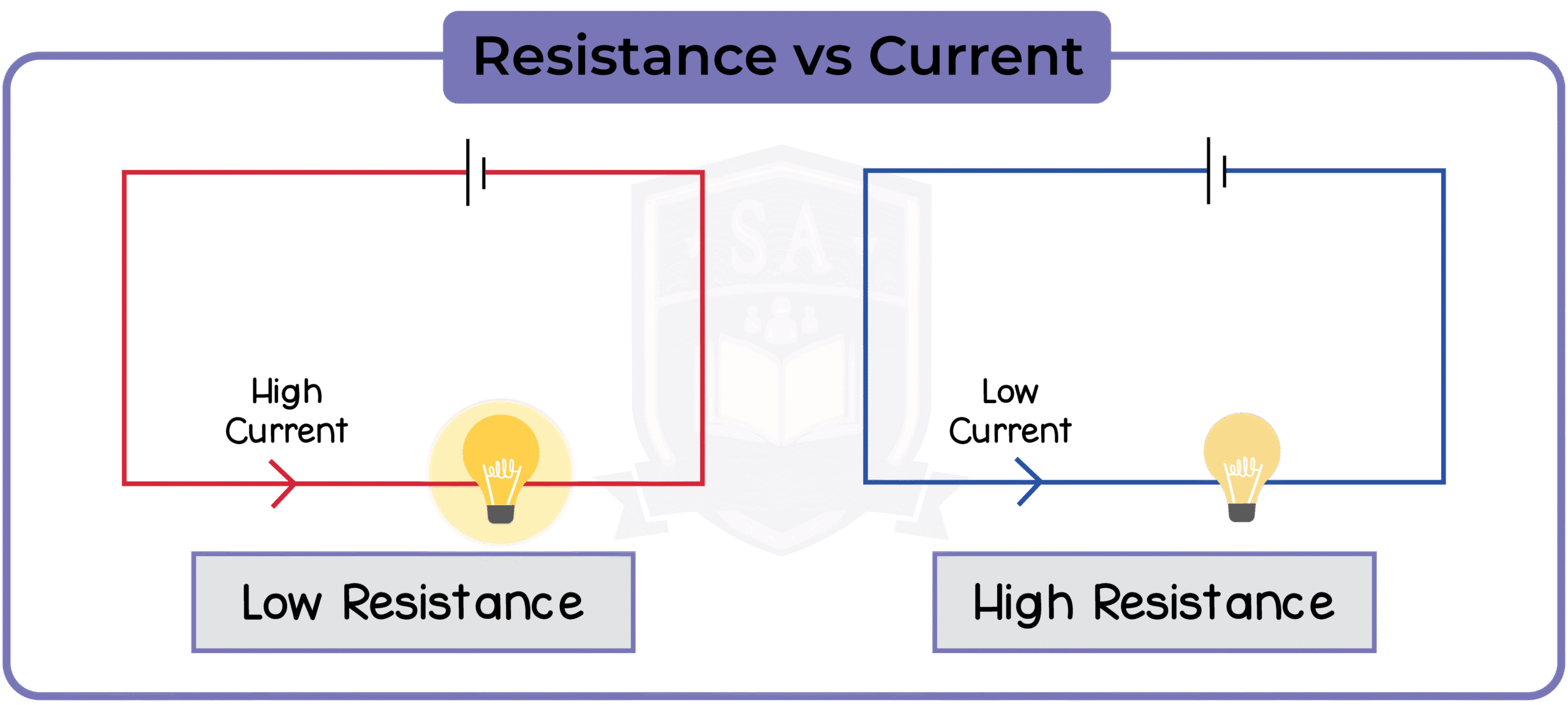

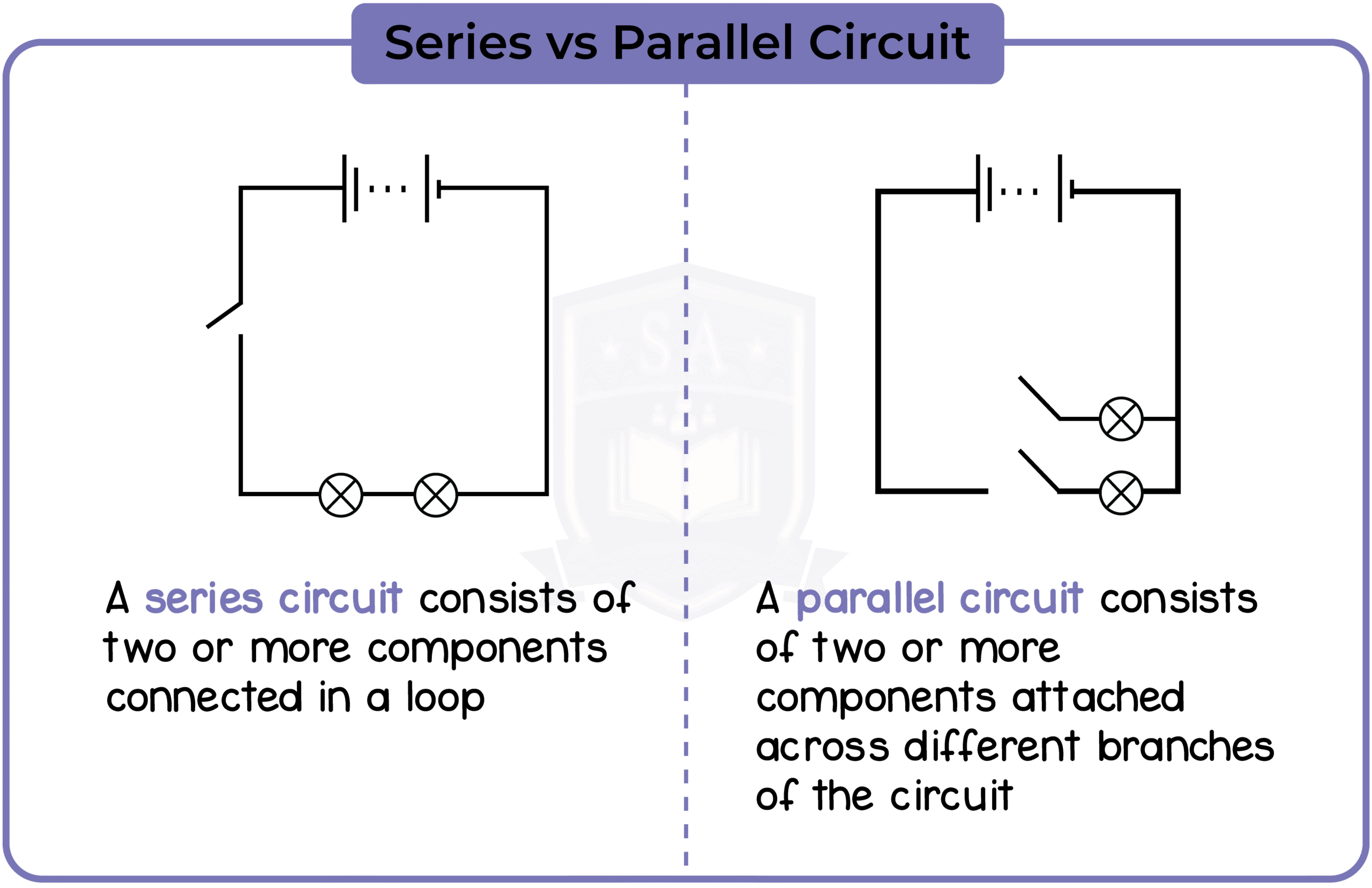

In a series circuit:
Current of entire circuit = current at first component = current at second component
Voltage of entire circuit = voltage at first component + voltage at second component
Resistance of entire circuit = resistance of first component + resistance of second component
Ctotal = C1 = C2
Vtotal = V1 + V2
Rtotal = R1 + R2
In a parallel circuit:

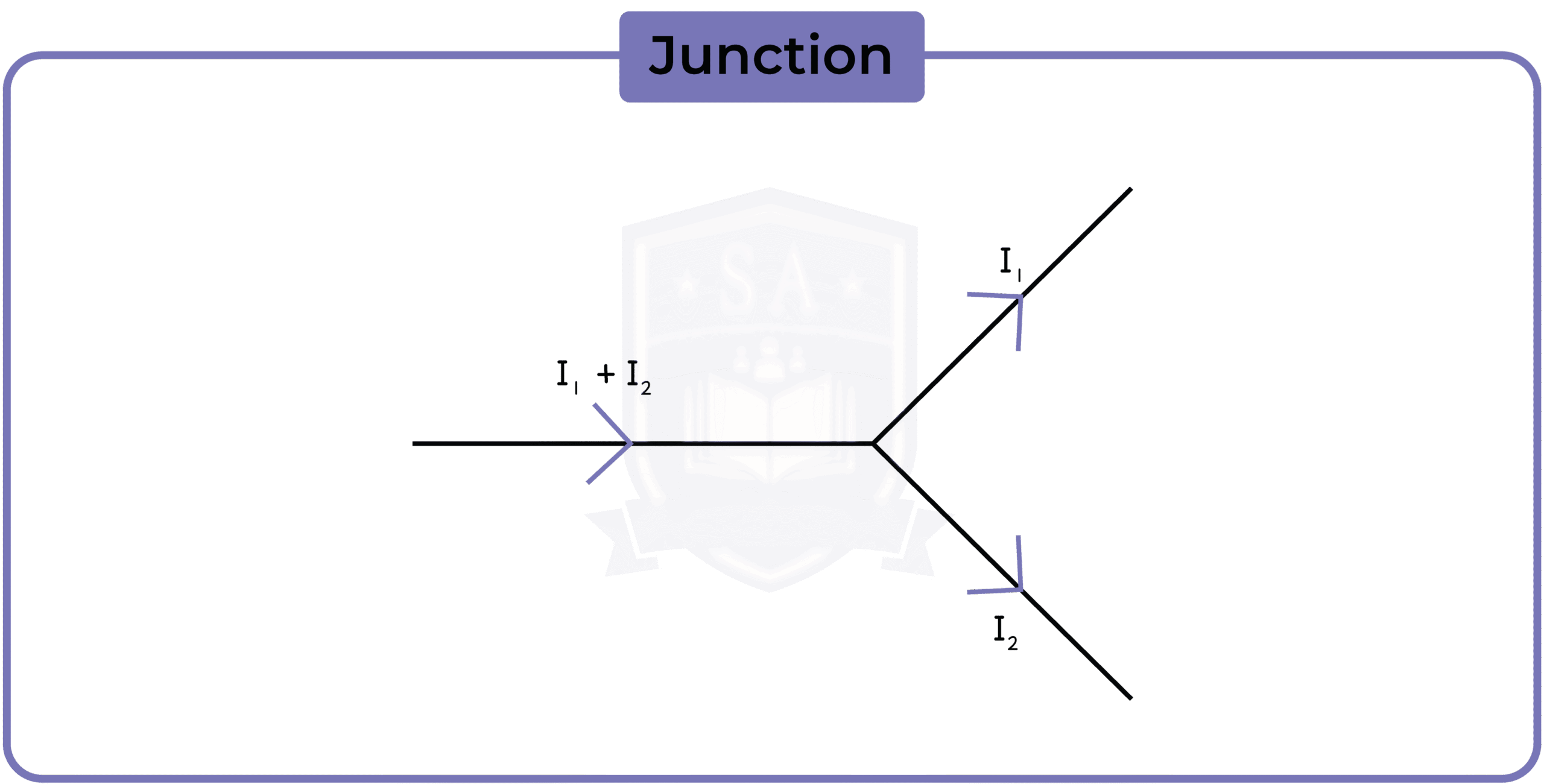

Current of entire circuit = current at first component + current at second component
Voltage of entire circuit = voltage at first component = voltage at second component
1/Resistance of entire circuit = 1/resistance of first component + 1/resistance of second component
Ctotal = C1 + C2
Vtotal = V1 = V2
1/Rtotal = 1/R1 + 1/R2
