4.7.3C Understand how to write the structural and displayed formulae of ethyl ethanoate
ETHYL ETHANOATE
Structural formula: CH3COOCH2CH3
Displayed formula:
4.7.4C Understand how to write the structural and displayed formulae of an ester, given the name or formula of the alcohol and carboxylic acid from which it is formed and vice versa

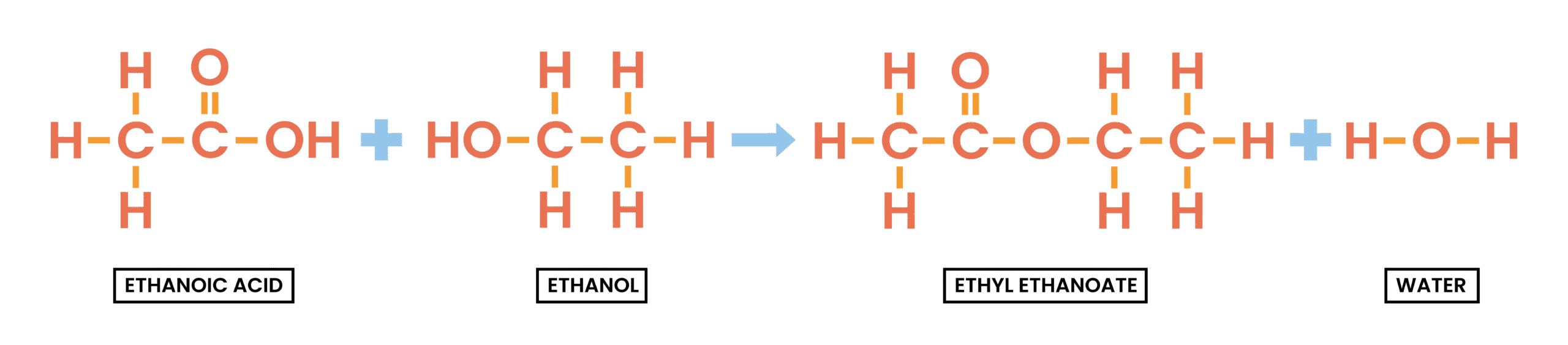

Esterification
alcohol + carboxylic acid → ester + H2O
During esterification:
H is lost from the alcohol
OH is lost from the carboxylic acid
The parts are combined to form ester

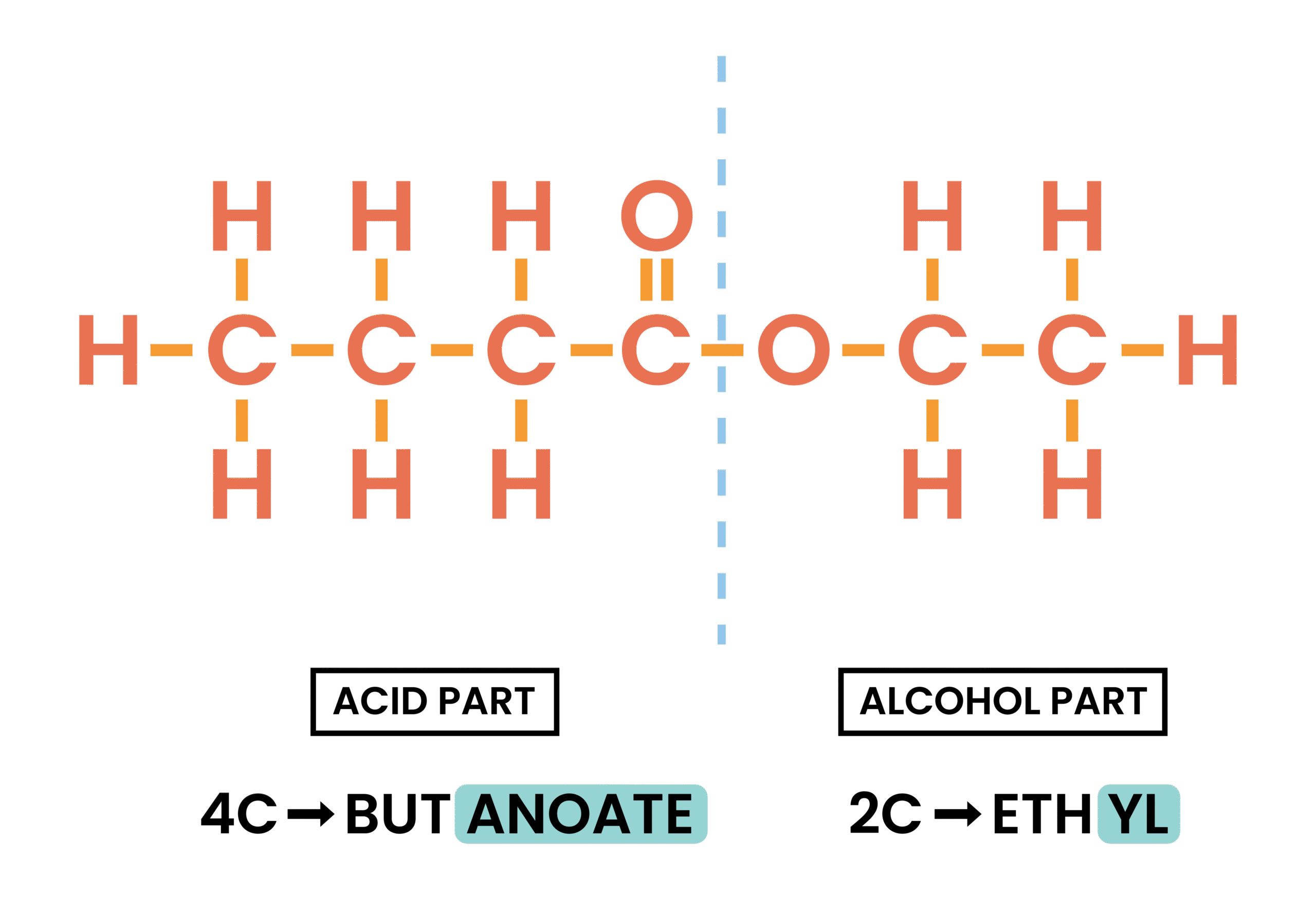

Identify the acid and alcohol part:
Split the compound between two oxygens
Acid: the half with C=O
Alcohol: the half with O
Naming of ester:
Count the number of carbons in both acid and alcohol part
Alcohol part: -yl
Carboxylic acid: -oate
4.7.5C Know that esters are volatile compounds with distinctive smells and are used as food flavourings and in perfumes
USES OF ESTERS
Esters are volatile compounds with distinctive smells
Ester are often used as food flavourings and in perfumes

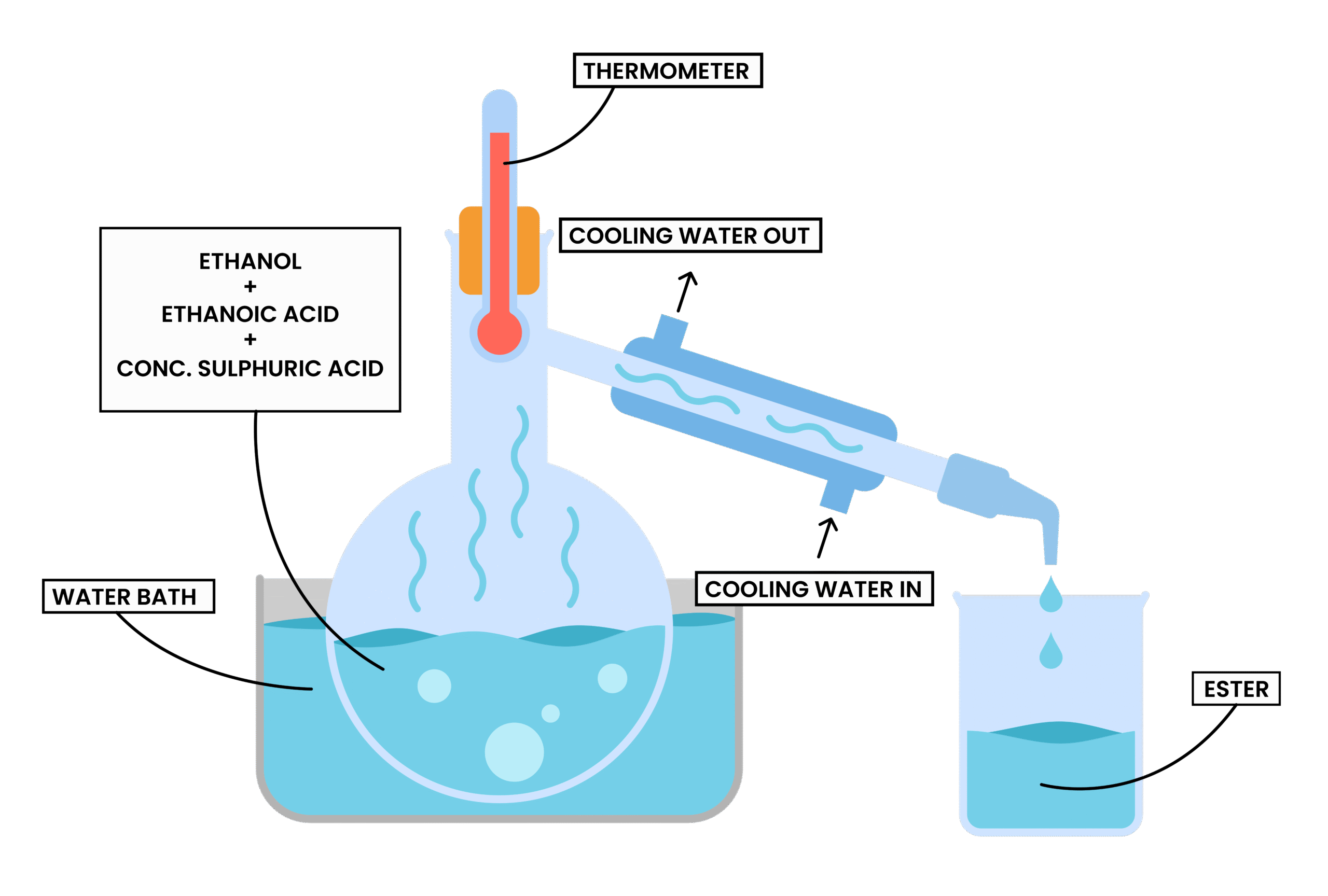

4.7.6C Practical: prepare a sample of an ester such as ethyl ethanoate
METHODS
Mix ethanol, ethanoic acid and concentrated sulphuric acid in a round-bottom flask
Gently heat the mixture using a water bath or electric heater
Bunsen burner cannot be used because ethanol is flammable
Ester formed is then distilled and collected to another beaker
Esters have lower boiling points, so they will evaporate first
Esters are removed from the mixture to prevent reverse reactions from occurring
